Eight/ten conjoined 1 liter bioreactor
Model: KNIKBIO -1GJ-8/10
Maximum Working volume: 0.7 liter
Material: Part glass body and 316L stainless steel lid and bottom
The high ratio: 2:1
Mixing method: magnetic stirring or mechanical stirring one of the two optional
Sterilization method: off-site sterilization or sterilization choose between one of the in situ
Control system: Siemens PLC, industrial LCD touch computer control, parameters can be set to store, can be remotely connected to the computer through the USB interface, the data
Stirring system
Mechanical sealing system : high-powered stirring oar, antifoam oar; AC electrical machine: infinite speed variation; rpm in the fermenter: 70~1２00rpm±1%,The height of the stirring oar can be adjusted, too.
Temperature detection and control
Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~65℃±0.1℃，temperature probe(US)
pH detection and control
2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Mettler, Switzerland) and shielding lead (Mettler, Switzerland). fermenter is autocontrolled with peristaltic pump
DO detection and control
0-150±3% displaying precision 0.1%, sensor (Mettler, Switzerland) and shielding lead(Mettler, Switzerland)
Feed control
fermenter uses peristaltic pump (Longer) to add meterials
Antifoam control
Tested by sencor and added antifoamer by peristaltic pump
Intake control (air) manual control rotameter
pressure detection and control
Pressure Control: Pressure meter and digital display and digital remote control, pressure control
we are compliant fermentation equipment for research, development, pilot and production applications. Our Factory in China. We provide the fermentor products including : Stainless steel fermenter, Pilot combo stainless steel fermentor, glass fermentor, fermenter, Multi-Union fermenter，Multi-stage fermentation tank，and shaking Incubators , Positive join stainless steel fermentor

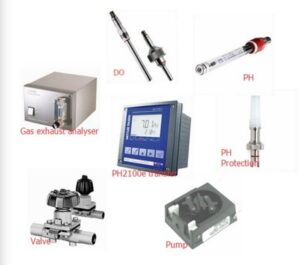

Material and brand of key components
|
No. |
Key component |
Material and brand |
Quantity
|
| 1
|
Vessel system | The cylinder designed by our company uses stainless steel combined with glass partly. Stainless steel:Glass: borosilicate glass. The framework is advanced. | 1 |
| 2 | Buncher | Panasonic, Japan | 1 |
| 3 | Speed regulator | Panasonic, Japan | 1 |
| 4 | Solenoid valve | Germany | 1 |
| 5 | Aeration filter | 0.2μm, SARTORIUS, Germany | 8 |
| 6 | Breathing filter | 0.2μm, SARTORIUS, Germany | 4 |
| 7 | pH electrode | Hamilton /Mettler-Toledo,Switzerland | 1 |
| 8 | DO electrode | Hamilton /Mettler-Toledo, Switzerland | 1 |
| 9 | Peristaltic pump | Longer | 4 |
Working environment:
Up to the internal &external environment required by fermentation
Up to the technic-required water supply. The temperature of cooling water is at least 5℃ below the temperature of fermentation
Power requirement: AC220/2KW
Compressed air: Primarily-processed compressed air, relative humidity:≤60%,ventilatory capacity is accorded to the technics.
0.3-1 LITER MINI BIOREACTOR
Suitable species for early screening
Greatly save time and cost of materials
Working volume of tanks are from 0.3L to 0.7L
Tanks and interchangeable training
Through low ventilation mode can additional match mass flowmeter
And pure oxygen bypass to enhancing the DO function
DIFFERENT PRODUCTS NAME
Fermenter/Glass Fermentor/Bioreactor/GMP Fermentation tank/Pharmaceutical fermentation/Situ fermenter/Industry pilot fermentor,Microbial fermenter,Glass fermenter,Stainless steel fermenter,Multi-stage fermenter,Multi-couplet stainless fermenter,Airlift fermenter,Plant cell bioreactor(illumination),Animal cell bioreactor,Solid fermentor,Enzyme Bioreactor,Vaccine Bioreactor,The bottom agitation bioreactor,Advanced Fermentor(weighing),Production fermentation system,GMP standard fermentation tank,Mixing tank,Exhaust analyzer,Advanced analysis software, Algae photo bioreactor,light fermenter, fermenter tank, Stainless steel fermentation tank.
| Name | Autoclavablemagnetic transmission miniature bioreactor | Autoclavable shaft driving mechanical mixing tiny bioreactor | In situ sterilization shaft driving mechanical mixing tiny bioreactor |
| Type | KNIK-XGC-mini | KNIK-XGJ-mini | KNIK-XGJA-mini |
| Total Volume | 300ml / 500ml / 600ml / 1000ml / 1500ml 2000ml | ||
| Materials | 316L stainless steel tank cover and temperature controlling interlayer at the tank bottom + borosilicate glass | ||
| Drive Mode | magnetic transmission | shaft coupling | |
| Sterilization | in autoclave | In situ automatic sterilization (electric heating) | |
| Basic Configuration | Temperature, Rpm, PH, DO, Feed, Air flow (manual), Pressure (manual) | ||
| Other | Electric power 220V – 2KW | Net 50kgs | Dimension:700*500*600mm (L * W * H) |
