Quick Details

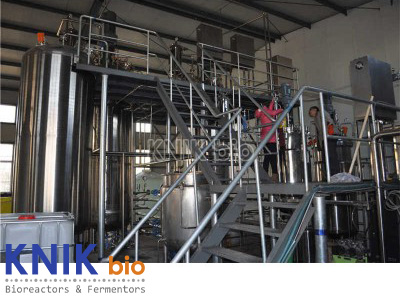

3000L Fermenter
| Item | Description |
Requirements and manufacturers |
| 3000L
fermenter
|
Fermenter body | The size of fermenter takes in general use type as basis and The main material of the fermenter is made by 316L stainless steel. The design pressure: P(inside)= 0.3Mpa, P(interlayer)= 0.3Mpa, The polishing precision: Ra0.4~0.6, the ratio between diameter and height: 1:2.5
3000 liter fermenter Work volumes ranging from 1000-2400 Liters
|
| Sterilization method | Auto Sterilization(SIP) | |
| Stirring system | Mechanical sealing system at the top of the fermenter; high-powered stirring oar, antifoam oar; AC electrical machine,
3000liter fermenterrpm: 50~500rpm±1%rpm; |
|
| Temperature detection and control | Heat by thermostatic water tank and circulate by circulating pump(Grundfos, Denmark), autocontrol (cooling water+5℃)~70℃±0.1℃,temperature probe(imported) | |
| pH detection and control | 2.00-12.00±0.05pH, autocontrol by adding acid and base, pH sensor (Switzerland) and shielding lead ( Switzerland). | |
| DO detection and control | 0-150±3% displaying precision 0.1%, sensor ( Switzerland) and shielding lead(Switzerland) | |
| Feed control | 3000L and 5000L
use Pneumatic diaphragm valve to add meterials |
|
| Antifoam control | Tested by sencor and added antifoamer by Pneumatic Diaphragm | |
| Aeration detection and control | Manual control ventilatory capacity, the precision of inhaler: 0.1μ, displayed by rotameter.
3000liter fermenter range of flow adjusting :0~5000L/min |
|
| pressure detection and control | Auto control exhaust by diaphragm cell valve, and displayed by pressure gauge. | |
| Pipeline and valve | The pipelines and valves which are in contact with the zymotic fluid are made by 316L stainless steel, the valves are diaphragm cell valves |
Technical parameter
Material and brand of key components
|
No. |
Key component |
Material and brand |
| 1 | Vessel system | The cylinder designed by our company uses stainless steel |
| 2 | Speed Motor | Sew Germany |
| 3 | Speed regulator | Fuji, Japan |
| 4 | Solenoid valve | Taiwan |
| 5 | Aeration filter | 0.2μm, Dominica United Kingdom |
| 6 | Breathing filter | 0.2μm, SARTORIUS, Germany |
| 7 | pH electrode | Switzerland |
| 8 | DO electrode | Switzerland |
| 9 | Pneumatic Diaphragm | Burkert Germany |
| 10 | PLC | SiemensGermany |
| 11 | LCDtouch screen | GCMS |
| 12 | Mechanical seal | John Crane United Kingdom |
| 13 | Pneumatic diaphragm valve | Burkert and Maimi Germany |
| 14 | The diaphragm valve | Burkert and Maimi Germany |
| 15 | Hydrophobic valve | Spirax UK |
| 16 | Pressure sensor | -0.1—0.3Mpa , Switzerland |
| 17 |
